320*160mm P1.25 Indoor LED Display Module

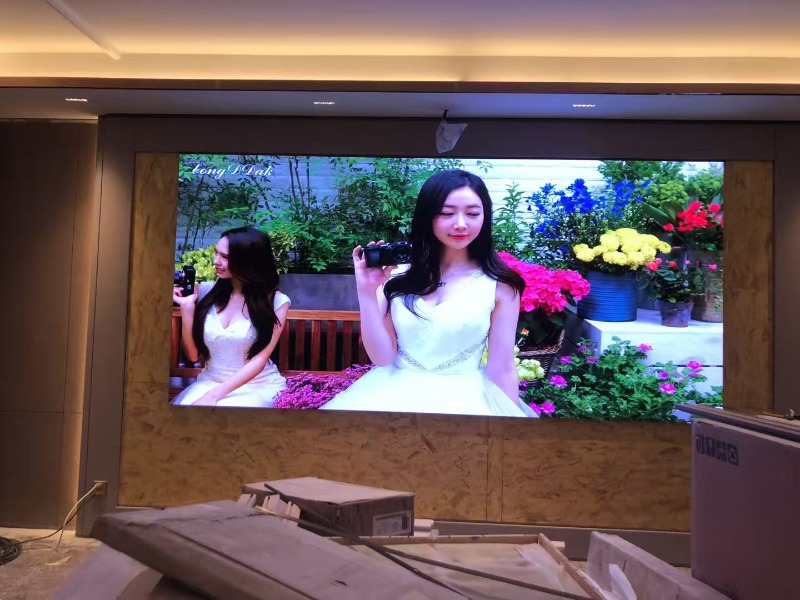

A P1.25 LED module is an ultra-high-definition indoor display panel with a 1.25mm pixel pitch. It is widely used for crystal-clear, close-up viewing in command centers, TV studios, and corporate boardrooms. It delivers 4K resolutions on smaller screens and seamless visual performance.

Send email to us

Product Detail

Product Tags

Key Specifications

• Seamless Splicing: Modules fit together tightly to create completely flat, large-format video walls.

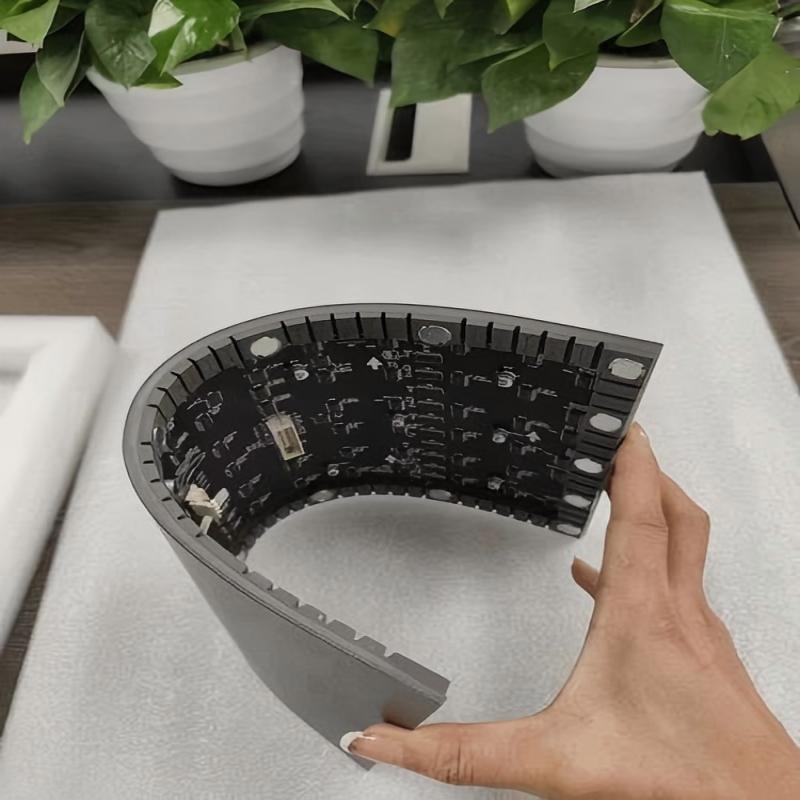

• Flexible Options: Available as rigid indoor panels or flexible soft modules for curved/cylindrical displays.

• Advanced Protection: Many feature GOB (Glue on Board) or COB technology for dust, moisture, and impact resistance.

• High Refresh Rate: Typically runs at 3840Hz, ensuring flicker-free broadcasting and smooth video playback

Standard Technical Specifications

• Pixel Pitch: 1.25mm

• Module Dimensions: Typically, 320mm × 160mm

• Resolution: 256 × 128 dots per module

• Pixel Density: 640,000 dots/m²

• Optimal Viewing Distance: 1 meter to 20 meters

• Brightness: ~600 to 800+ nits (optimized for indoor eye comfort)

Parameter

Product Model	P1.25mm Indoor LED Module
Module size	320mmx160mm
resolution ratio	256*128dots
Pixel pitch	1.25 mm
Pixel configuration	RGB 3in1
Driving method	Constant Current Driving,1/64 scan
Working voltage	DC5V
Module maximum power consumption	55W/Pc
Led Lamps	SMD1010 (Black LED)
Frame rate	60Hz/Second
Refresh rate	≥3840HZ
Brightness in White Color (cd/m2):	800-1000 CD/m2
Contrast ratio	≥4000:1
Life time	≥100000 hours
Operating humidity	10%-90%RH
Average power consumption	≤300W/m2 (MAX 700)
Viewing Angle	140(Horizontal),140(Vertical)
Best Viewing Distance	1m-10m
Input Voltage	110V/60HZ-220V/50Hz Switchable
