Pixel Wave Light

The wave length is popular for entertainment venues such as KTV room, disco, nightclub, etc. Impressive 3D display effect changes by music, bring stunning visual and auditory effects to your room.

Send email to us

Product Detail

Product Tags

Product Description

This new wave light is designed for entertainment and performance scenarios. Featuring a matrix-style adjustable light pole structure, it breaks the flat programming limit of traditional Madrix. Customize the pole length to create dynamic wave shapes, delivering rich 3D light layers with simple programming.

It suits various applications: rentals, lifting scenarios, and entertainment venues like bars, stages, and KTVs. With 110V-220V voltage, daisy-chain connection, and RJ45 interface, wiring is simplified. Equipped with 24 x 2W color-changing lights + 225 pixel panels, it achieves wide-angle spotlight coloring, soft light effects, and VJ material playback.

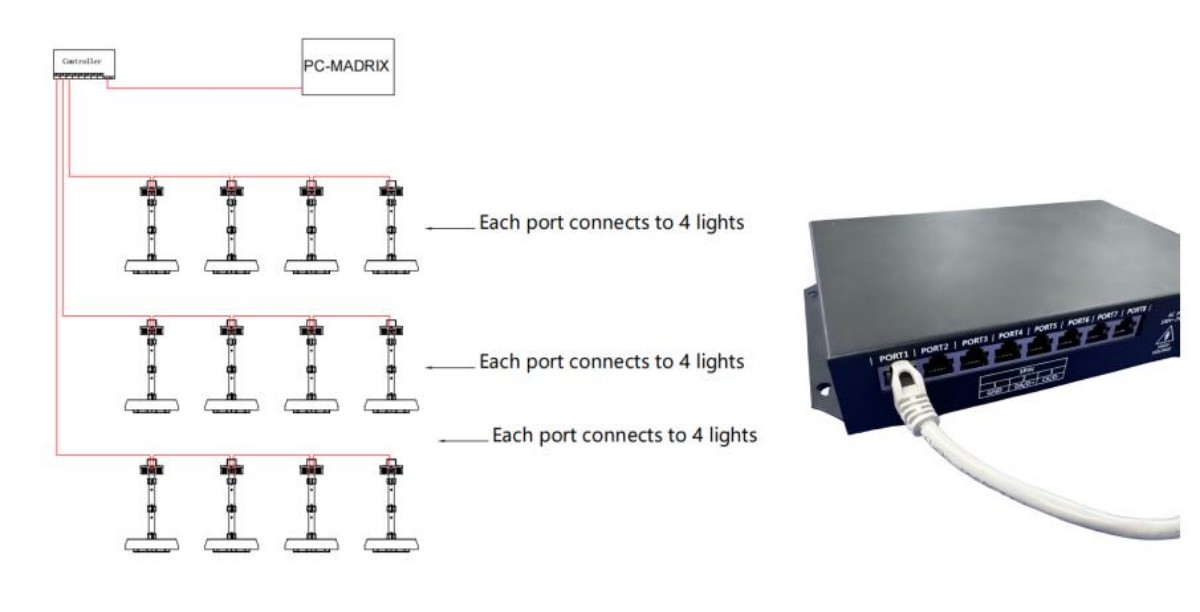

Controlled via SPI protocol (supports MADRIX, DMX512, ARTNET, DVI), it delivers 3D immersive visuals with just flat programming – a flexible and stunning visual ambiance tool.

Features

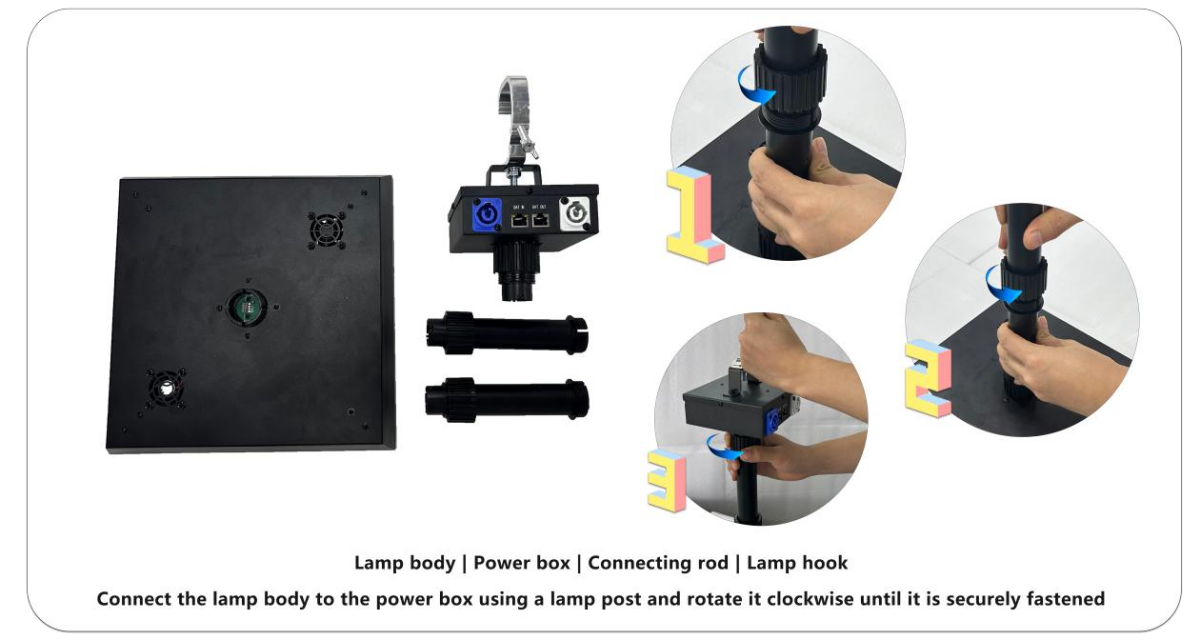

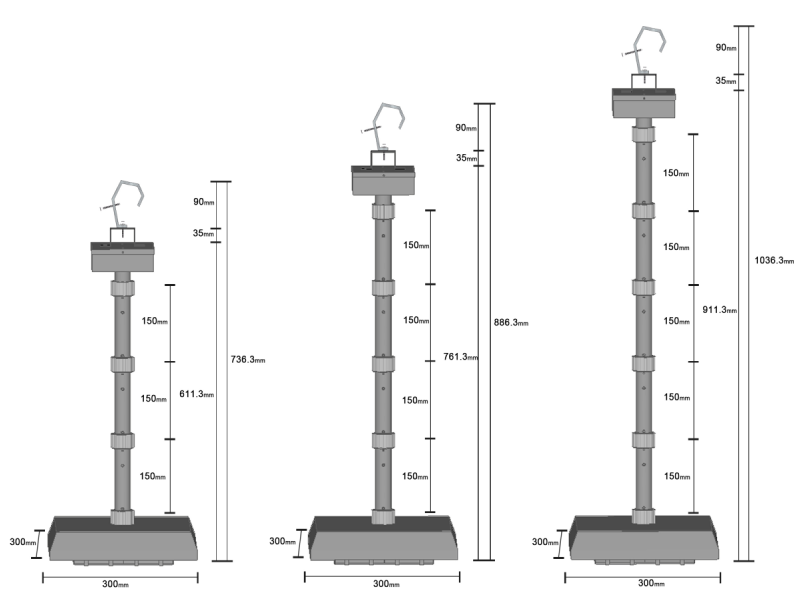

1. The height is adjustable, and the number can be increased or decreased as needed to achieve a personalized design.

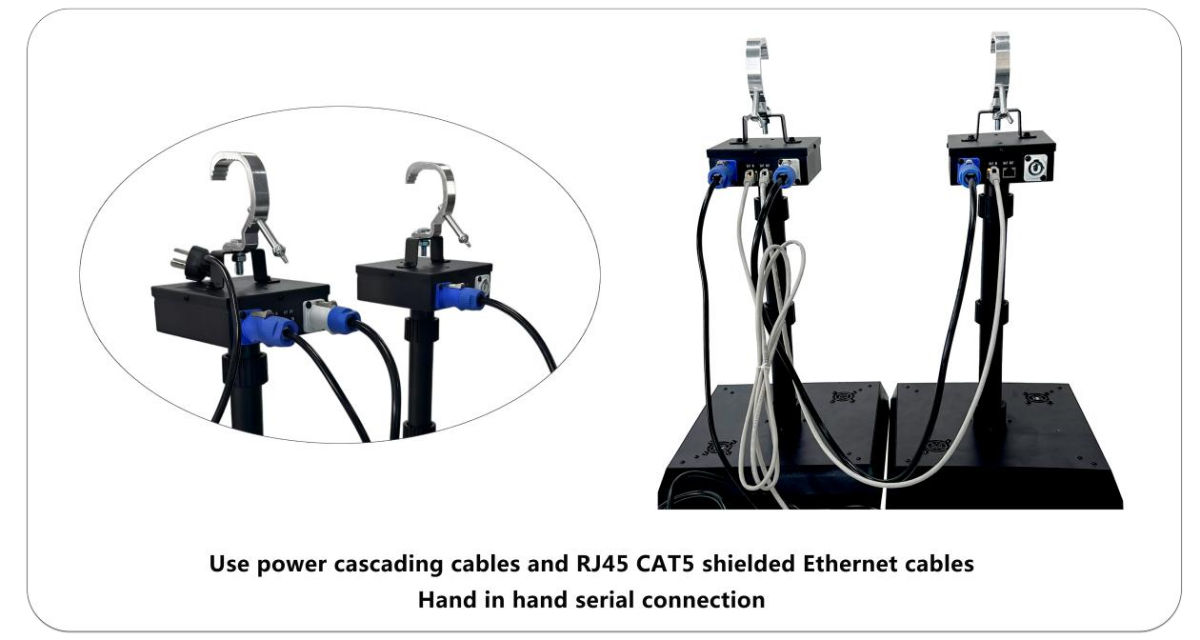

2. Simple installation, supports 110V-220V voltage, and can be connected in series.

3. Using the WS2812 chip, 249 pixels can achieve wide-angle light focusing and coloring, as well as softening light, to present smooth lighting effects such as gradients and jumps.

4. Using the TTL standardized control protocol, it can be controlled via MADRIX, DMX512,ARTNET, DVI, etc., and can present 3D immersive visual effects through programming.

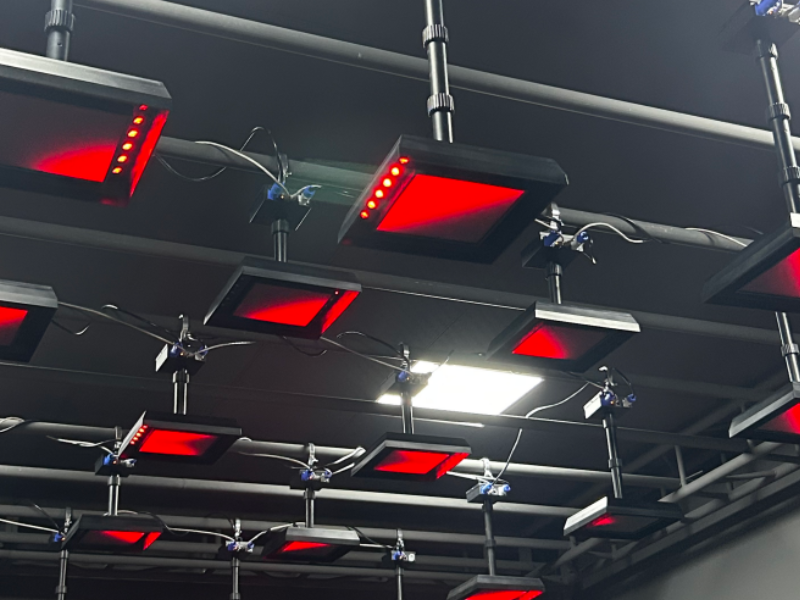

5. The product has a wide range of applications and can be used in lifting scenarios and various entertainment and performance venues such as bars, stages, and KTVs.IP Rate:

Specifications

Voltage	110V-220V
Power	65W
IP Rate	33

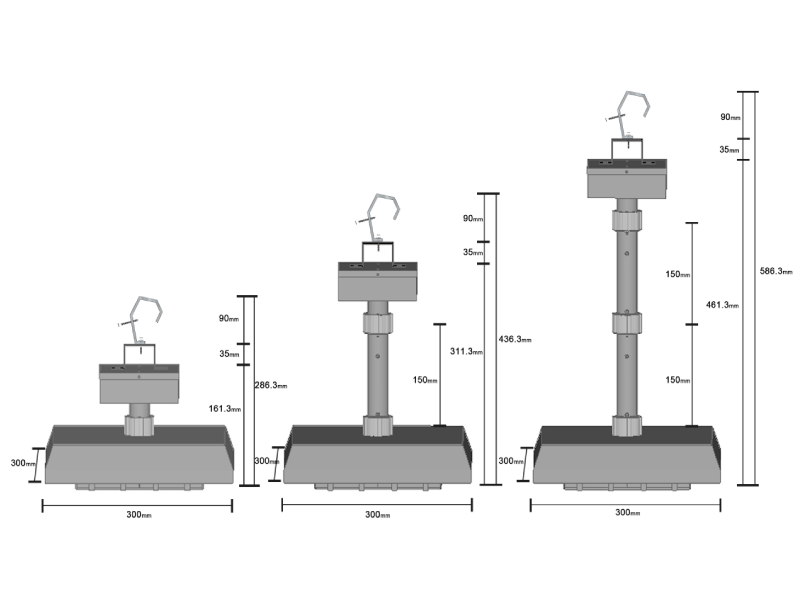

Size	650300300mm(Three-light pole)
Protocol	TTL
Material	PC+ABS+Metal
Pixels	249 (Wash LED24+Pixel Screen225)
Lifespan	50000h
Weight	2.65KG
Lighting effects	Wash+Pixel Screen
Connector Bar length (per section)	15cm
Channel	RGB
SMD	WS2812 5050RGB
Cascade length	Sections 1 to 15
SMD	WS2812 5050RGB
