What is P4 resolution?

The module resolution can be 80*40dots or 64*32dots, depending on the module size. Two sizes are available for selection.

Key Features:

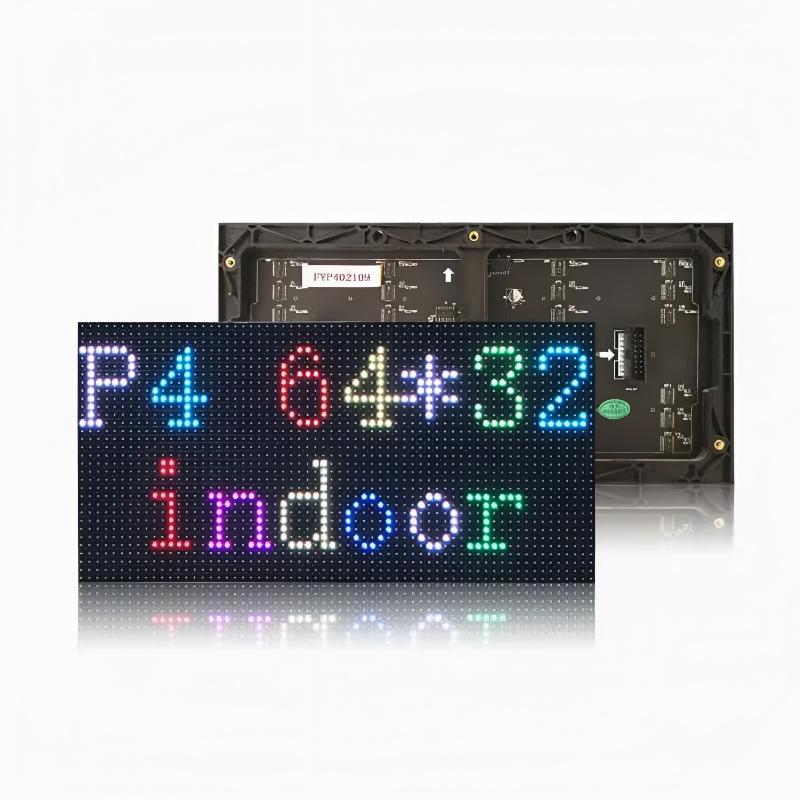

• Resolution: 2,048 dots with 64×32 pixels or 3,200 dots with 80×40 pixels.
• 4mm pixel pitch for better visual performance with good Clarity
• Dimensions: 320mm x 160mm / 12.6” x 6.3” or 256mm x 128mm / 10.1” x 5.0”
• Best for indoor, 160-degree visibility
• 5V regulated power input
• 1R1G1B full-color LED screen panel
• Constant current 1/16 or 1/20 scan
• 600-1,000 nits brightness.
• Highly stable driver ICs for better color uniformity and vibrant images
• Designed with the latest SMD 1R1G1B encapsulation, offering excellent full color present.
• High contrast ratio of 5000:1 to deliver vibrant colors.
• High refresh rate with over 1920hz to 3840Hz to allow flicker-free

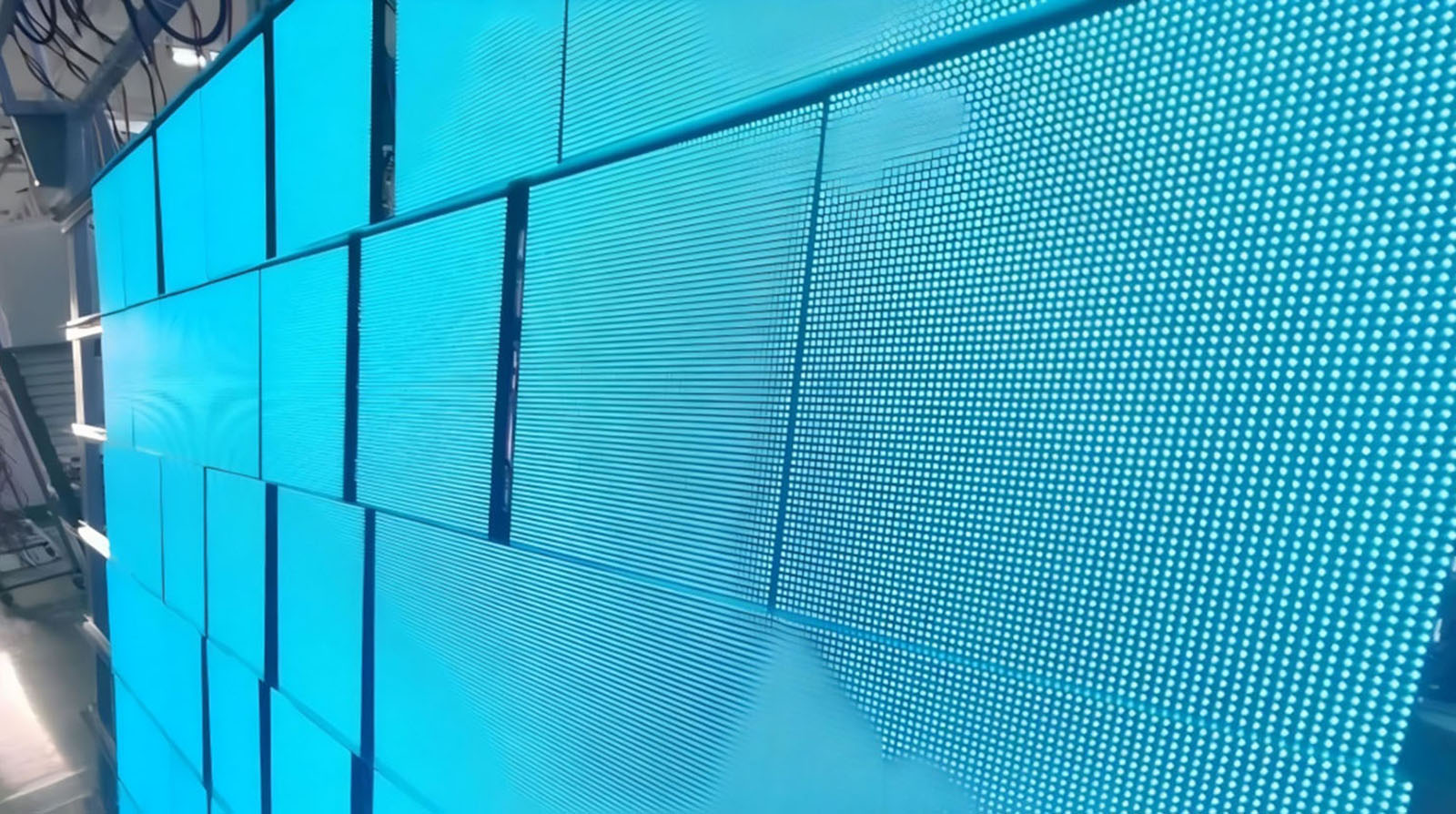

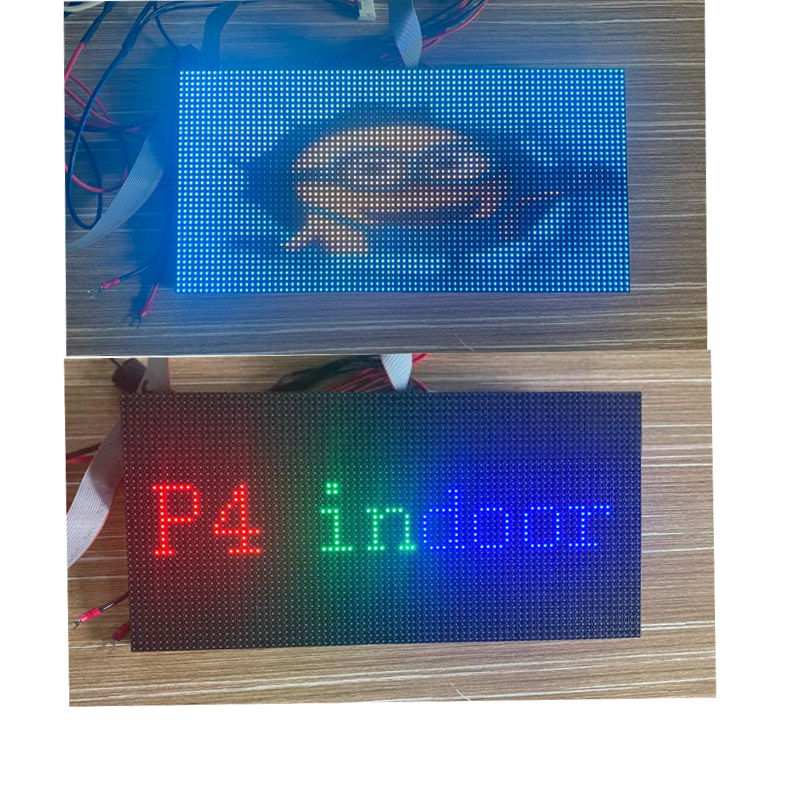

P4 LED indoor module

Pixel pitch 4mm Indoor Applications Eye-catching visual performance High contrast ratio LED lamp bead: SMD2121 3800HZ Refresh Rate. The P4 indoor led display module panel adopts high-refresh-rate chips as the led screen. 320*160mm size, 80*40 dots. LED has a high resolution and offers better visual effects. With a pixel pitch of 4mm and 62,500 dots per square meter, the indoor P4 LED display module features high resolution and wide viewing angles.

Specifications

LED-80*40

Color	Package	Intensity	View Angle	Wavelength	Test Cond.
Red	SMD 2121	150mcd	140/140	620nm	25℃,20mA
Green	SMD 2121	400mcd	140/140	520nm	25℃,20mA
Red	SMD 2121	100mcd	140/140	470nm	25℃,20mA
Resolution			80(H)×40(V)
Pitch			4mm
LED Arrangement			SMD2121
Driver Mode			Dynamic 1/20 Duty constant current
Size			320mm×160mm
Mask			Pure Black mask-high contrast screen
Electricity Parameter
Brightness			800-1000 (Nits)
View Angle			140-degree ( horizontal) 140 degree(vertical)
View Distance			4m-40m
Gray Scale			8bits input, correction with 16bits
Display Color			16.7M
Brightness Adjustment			100 levels
Power Supply
Operation Power			AC100-240V 50-60HZ Switch-able
Maxim Power Consumption			700 W/m2
Average Power Consumption			300 W/m2
Control System
Correction Scale Level			16bits
Frame Update Frequency			60Hz
Screen Refresh Frequency			480-960Hz
Gamma Correction			-5.0—5.0
Support Input			Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance			Ethernet cable 100m, optical fiber 5km
Support VGA Mode			800×600,1024×768,1280×1024,1600×1200
Color Temperature			5000-9300 adjustable
Brightness Correction			dot by dot, module by module, cabinet by cabinet
Reliability
Operating Temp.			-20-60 Celsius degree
Operating Humidity			10-95% RH
Operating Life			100,000 hours
MTBF			5000 hours
Continuous Working Time			≥48 hours
Protection Level			IP40
Out of Control Pixel Rate			0.01%

What is the difference between P3 and P4 LED? How can we distinguish them？

(1) Price: Generally speaking, the prices of P3 LED module will be higher than that of P4 LED module as P3 LED module has higher resolution and clearer visual performance.

(2) Resolution: When it comes to LED displays, the difference between P3 and P4 lies in the number of points per area. P3 has a higher number of pixels per square meter, with around 111,111 pixels compared to P4’s 62,500.

The smaller the pixel pitch, the higher the pixel count, resulting in better picture clarity. This means that P3 displays offer a clearer visual experience than P4 displays. Choose the pixel pitch that best fits your needs and elevate your display game!

(3) Viewing distance: Different pixel pitch has their corresponding reasonable viewing distances.

For P3 LED, the optimal viewing distance can be 3m, and for P4 LED, it can be 4m. We may select the model based on the project situation ourselves. It's not the case that a larger pixel pitch means lower clarity. Only by choosing the right model reasonably and spending money where it is useful can its value be reflected.

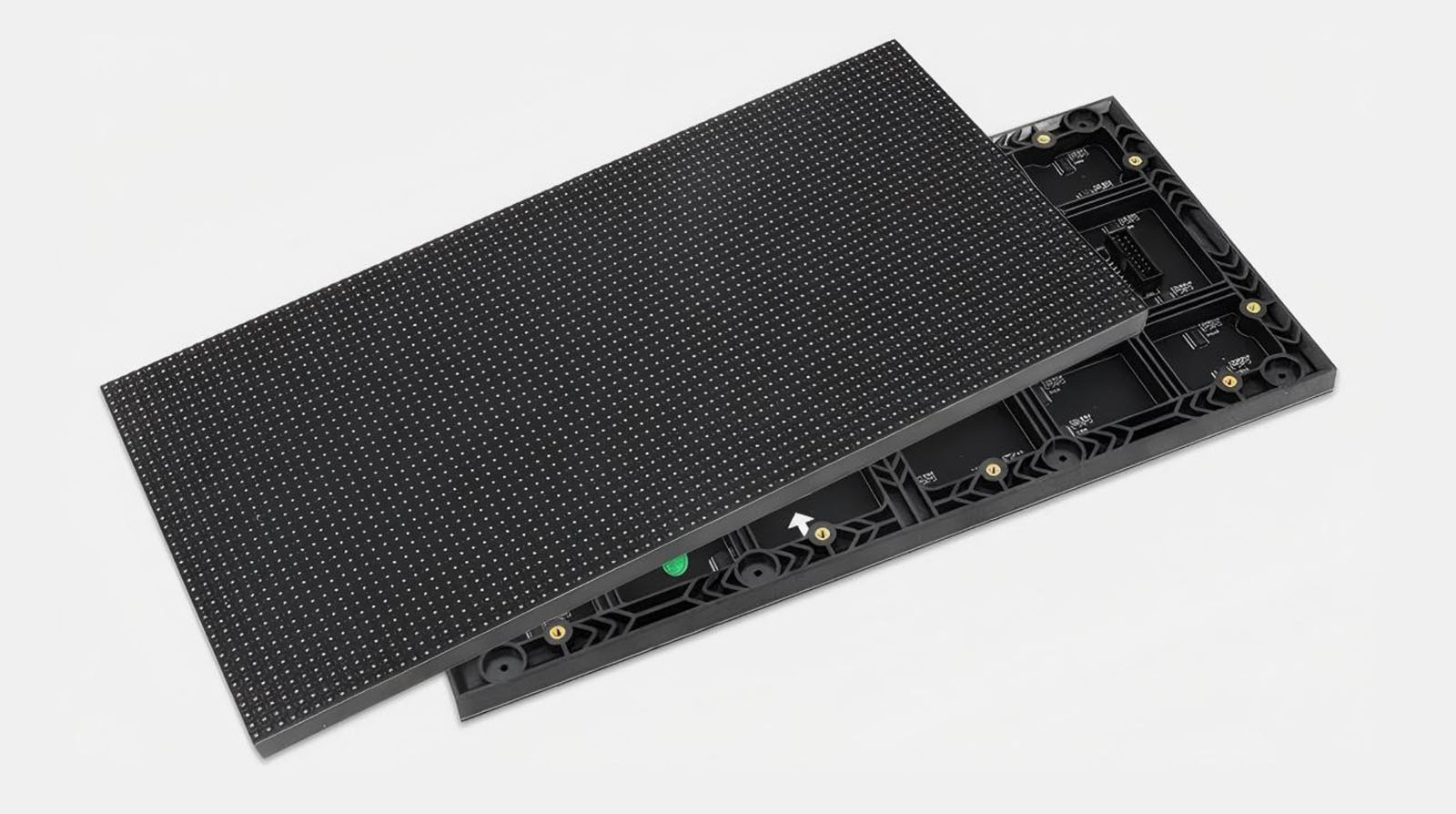

The P4 indoor LED module adopts the latest black 2121LED technology, offering deeper blacks and higher contrast, making pictures and videos more vivid. The integration of complex driver ICs provides reliable control over LEDs, ultimately achieving smooth visual performance and a high refresh rate of up to 3840Hz. The 1.2mm thick multi-layer corrugated board with a high-elastic bottom shell prevents the module from deforming easily, ensuring better consistency in the flatness of the screen.

The high refresh rate enables the P4 to eliminate image flicker and ensure that moving scenes look smooth, making the monitor suitable for various dynamic environments such as broadcasting studios, retail, advertising, stages, churches, monitor rooms and indoor Spaces, where engaging and eye-catching content is indispensable.

Tell me your total wall space dimensions or budget, and I can help you figure out how many modules you need!
