192*192mm P3 SMD Indoor P3 LED Display Module

The P3 indoor LED module is a high-resolution LED display panel with a 3mm pixel pitch. Although small in size, it offers 4096 RGB LEDs, which are distributed in a matrix of 64 by 64. This module combines red, blue, and green to provide full-color text, images, and video for a variety of indoor LED video walls. In addition, it is easy to use and allows you to create any size LED display and place it in various environments. It focuses on visual performance and delivers an immersive visual feast.

Send email to us

Product Detail

Product Tags

The 1:1 ratio shape brings more attraction and flexibility. In terms of visual performance, the P3mm LED matrix uses industry-leading black SMD1921 LEDs, a black mask, and a PCB board to reduce light reflectivity and improve color consistency and contrast. Whether you need a new LED video wall or to replace a traditional digital billboard, you can rely on the P3 LED panel for high definition, low power consumption, high stability, performance, and visual output. It is designed and optimized to deliver quality images for a wide range of high-end indoor LED video walls.

• Resolution: 4,096dots with 64×64 grid matrix.
• 3mm pixel pitch for better visual performance with good Clarity
• Dimensions: 192mm x 192mm / 7.6” x 7.6”
• Best for indoor, 160-degree visibility
• 5V regulated power input
• 1R1G1B full-color LED screen panel
• Constant current 1/32 scan
• 600-1,000 nits brightness.
• Highly stable driver ICs for better color uniformity and vibrant images
• Designed with the latest SMD 1R1G1B encapsulation, offering excellent full color present.
• High contrast ratio of 5000:1 to deliver vibrant colors.
• High refresh rate with over 1920hz to 3840Hz to allow flicker-free

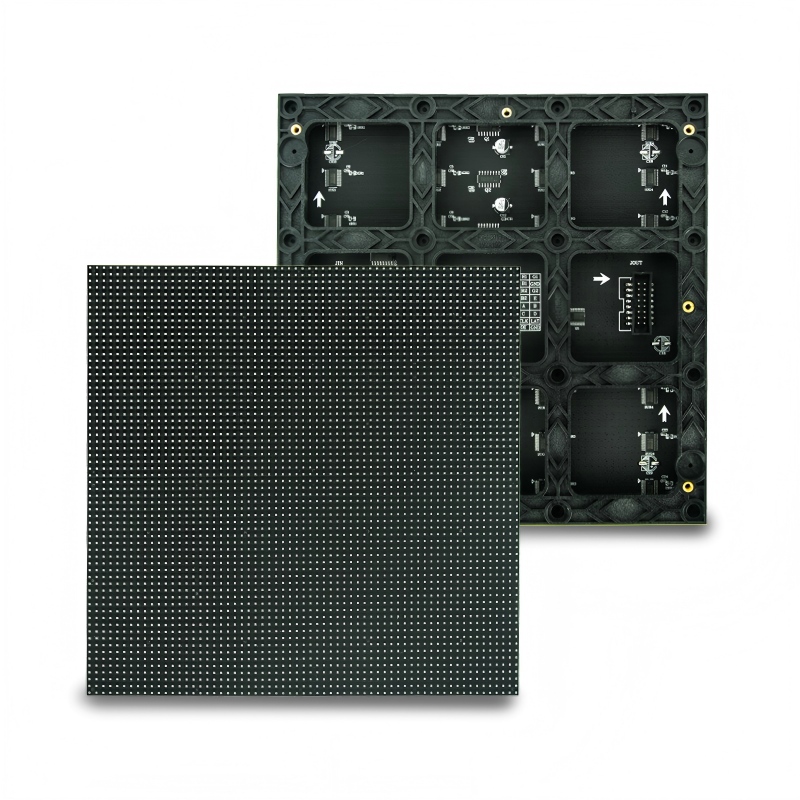

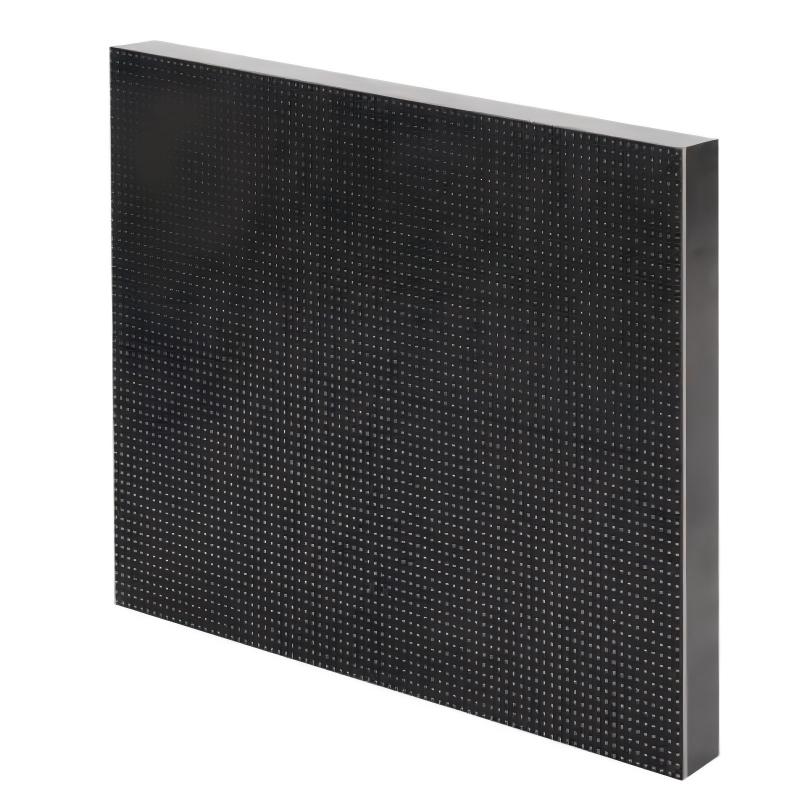

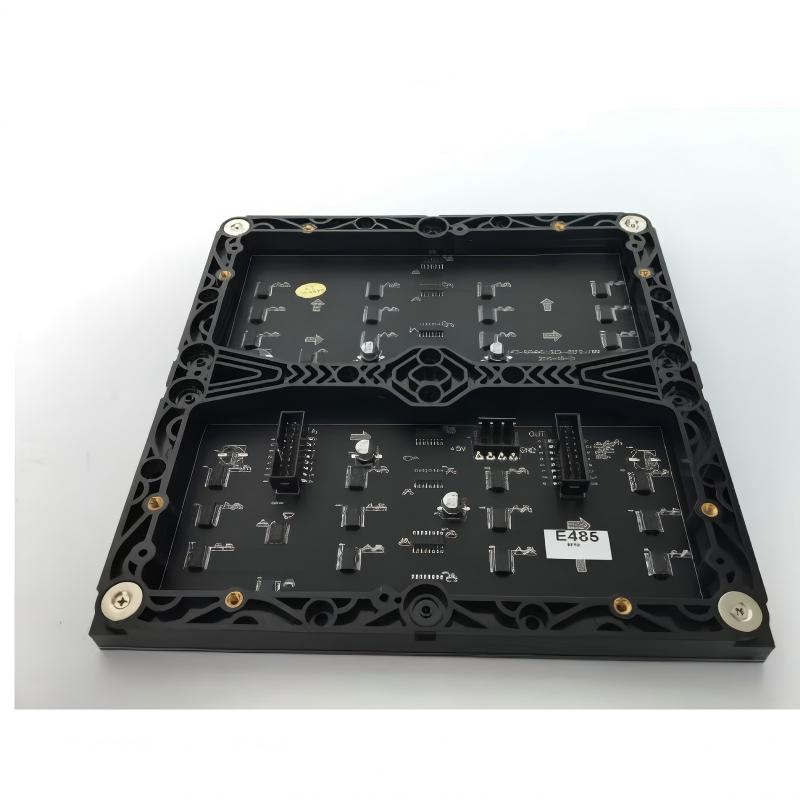

P3 indoor led module front side and back side

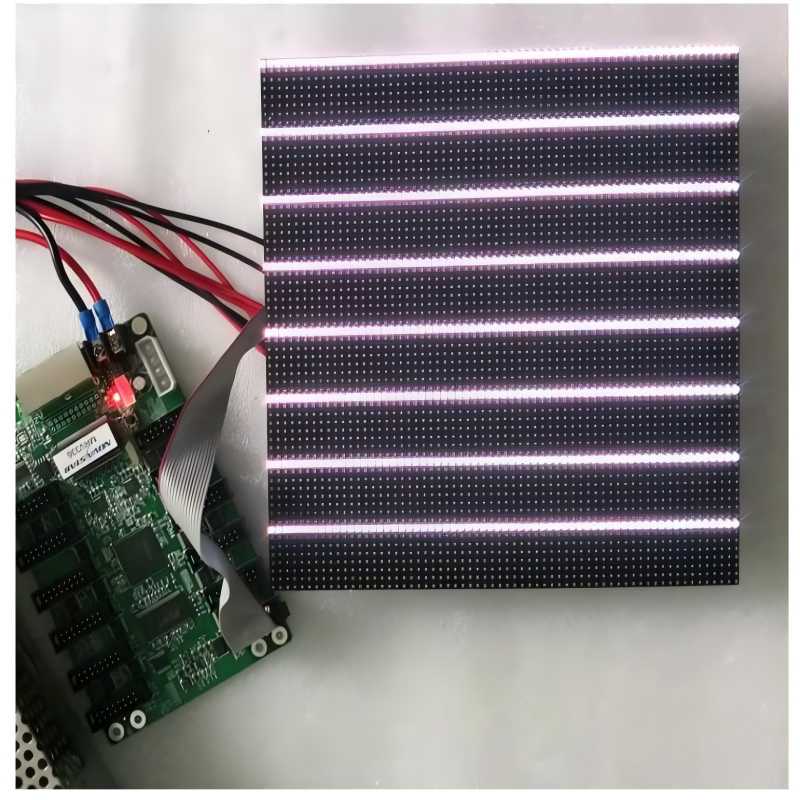

P3 indoor led module lighting effect

Overview

Module specifications

Pixel Pitch	3mm
Pixel Configuration	SMD3in1
Module Resolution	64×64 pixels
Module Pixels	4096 pixels
Module Size	192x192mm

Screen Specifications

Screen Brightness	≥1000cd/m2
Driving Method	1/32 scan
Mini Viewing Distance	3m
Max. Power Consumption	600W/m2
Average Power Consumption	250W/m2
Gray Level	14bits input, 4096 levels
Display Color	16M
Frame Frequency	≥60Hz
Refresh Frequency	≥1920Hz
Uninterrupted Working Hours	≥72 hours
Screen Life-span	≥100,000 hours
MTBF	≥5,000 hours
Discrete Blind Spot Rate	<1/10000
Continuous Blind Spot Rate	None
Blind Spot Rate	<1/10000
Screen Plainness	<±1mm
Power Supply Mode	AC220±10% 50Hz/AC110±10% 60Hz
Environment Temperature & Humidity	Temperature: -20 Celsius~+60 Celsius Humidity:10%~90% RH
Control Mode	Synchronous display with control PC by DVI
Control System	DVI video card + full color control card + fiber system(optional)
Display Content	Video, DVD, VCD, TV, picture, cartoon, graphics, texts, etc.
Interface	Standard Ethernet
Transmission Distance	Multi-mode fiber <500m, single mode fiber <30km, internet cable <100m

Related Applications

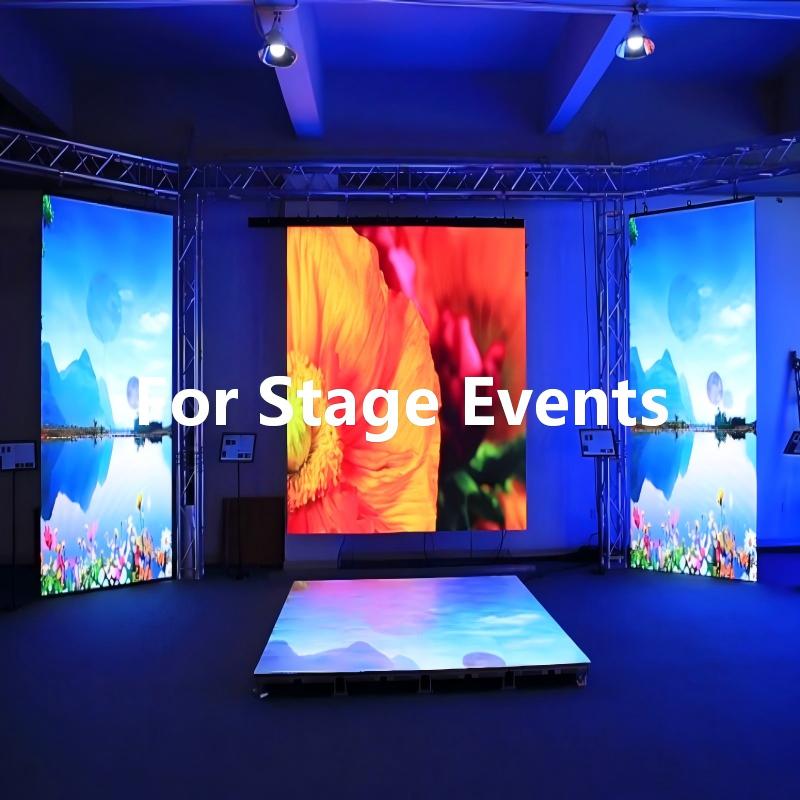

LED stage displays elevate events by combining visual impact, interactivity, and adaptability, creating memorable, immersive experiences that captivate audiences and enhance the overall production quality.

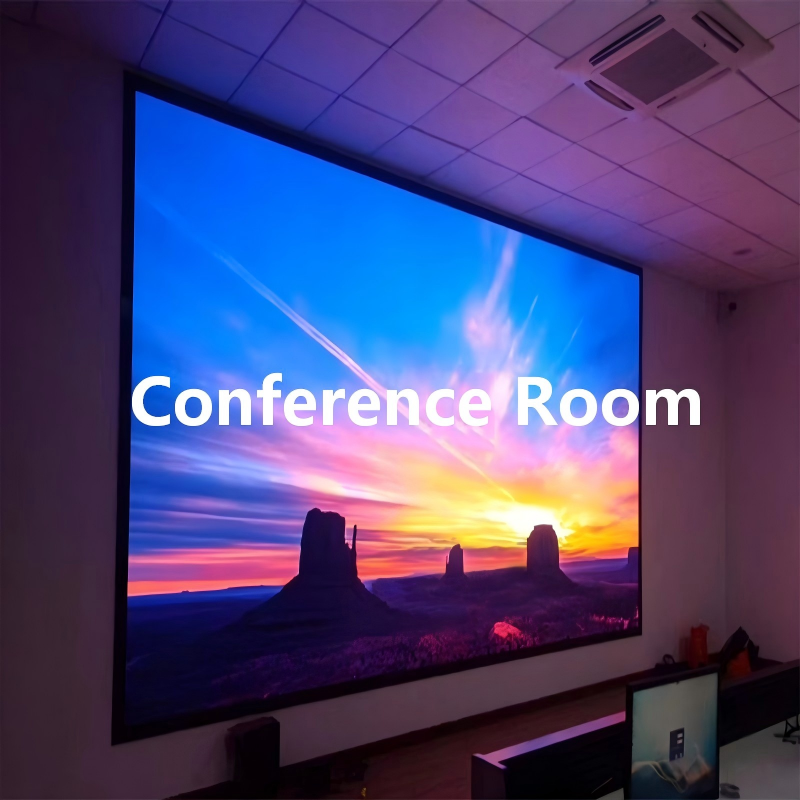

LED displays for conference rooms offer clearer visuals, better adaptability, lower operating costs, and a more professional look, flexibility, and operational efficiency making them a strong upgrade over older display technologies for modern meeting spaces.

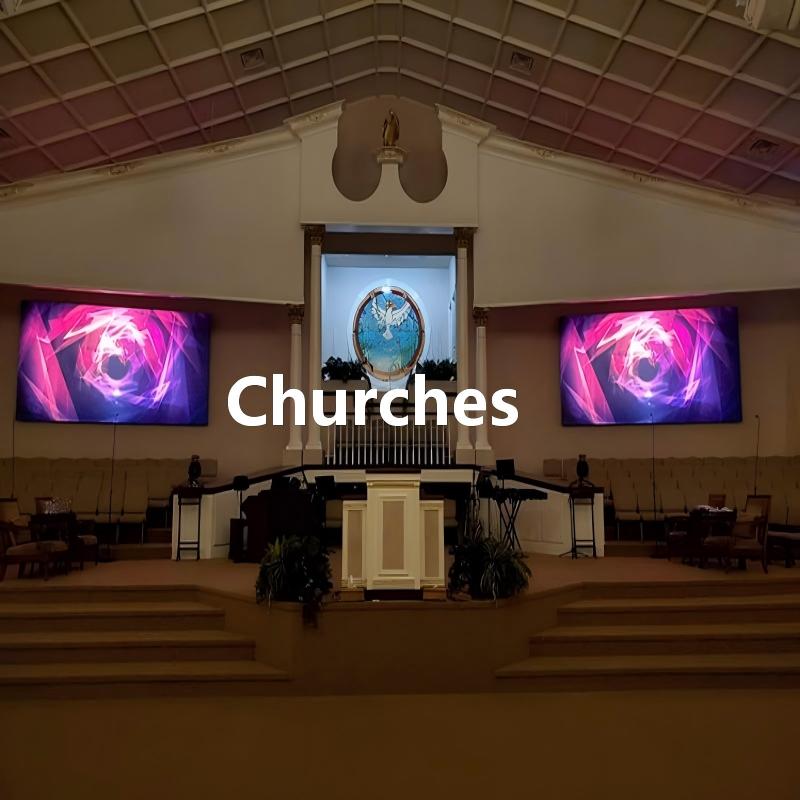

LED displays improve visibility, engagement, accessibility, and versatility in church settings, making them a valuable tool for modern worship and community outreach.

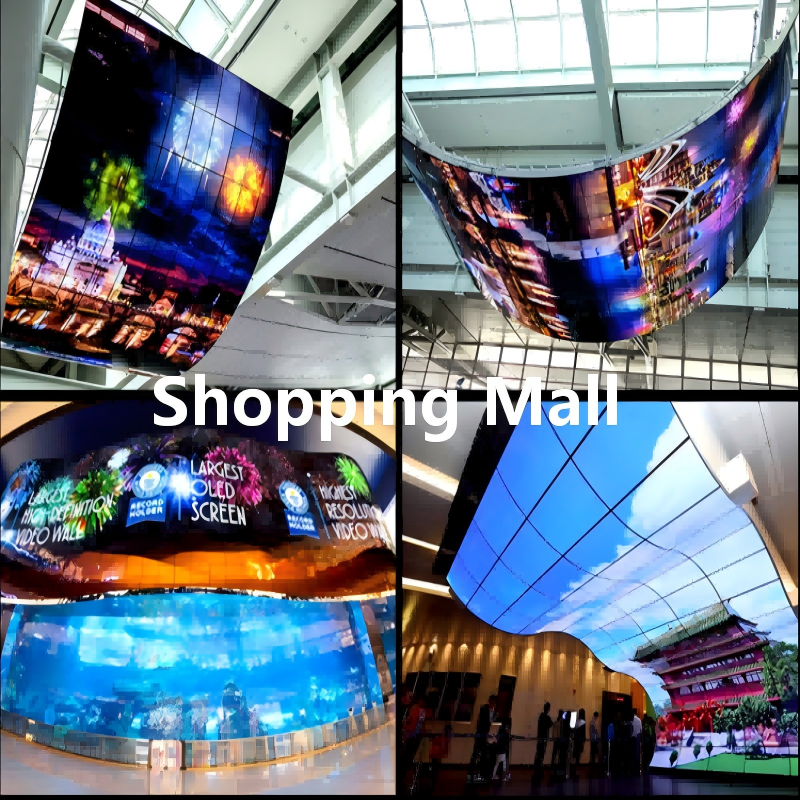

LED displays help malls attract more visitors, keep them engaged longer, improve navigation, and create a modern, immersive environment—all while enabling flexible, real-time marketing and generating additional revenue. These benefits make them a smart investment for competitive retail spaces.

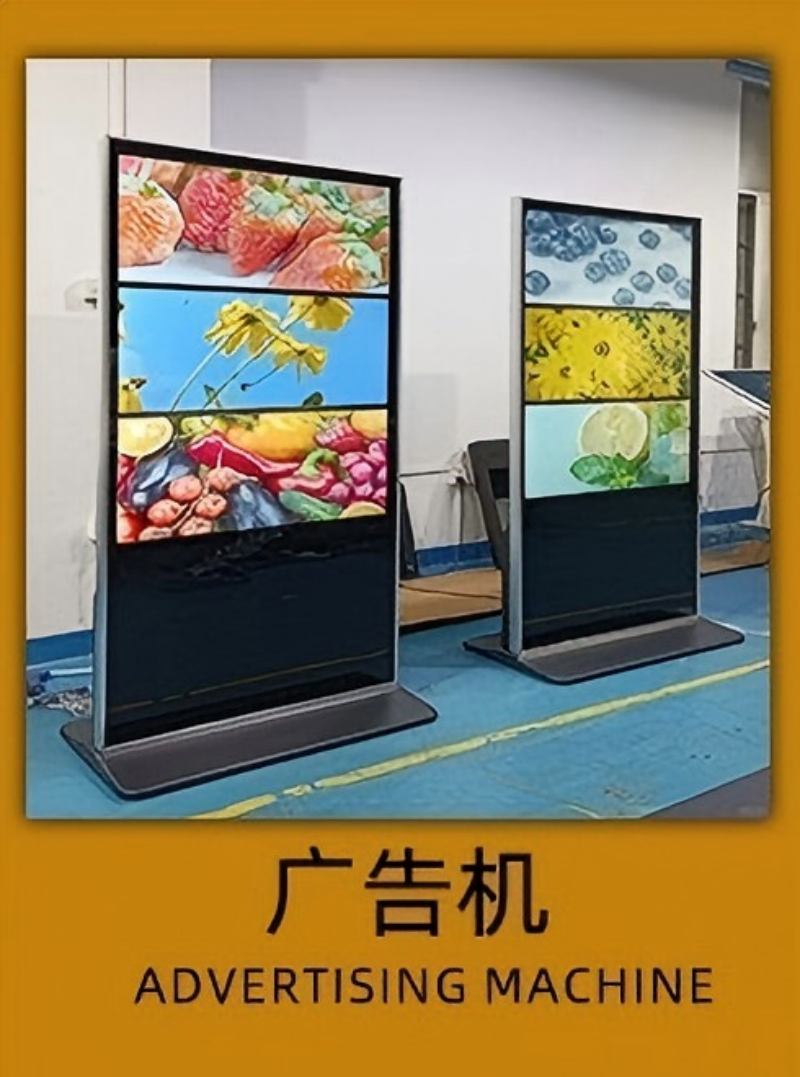

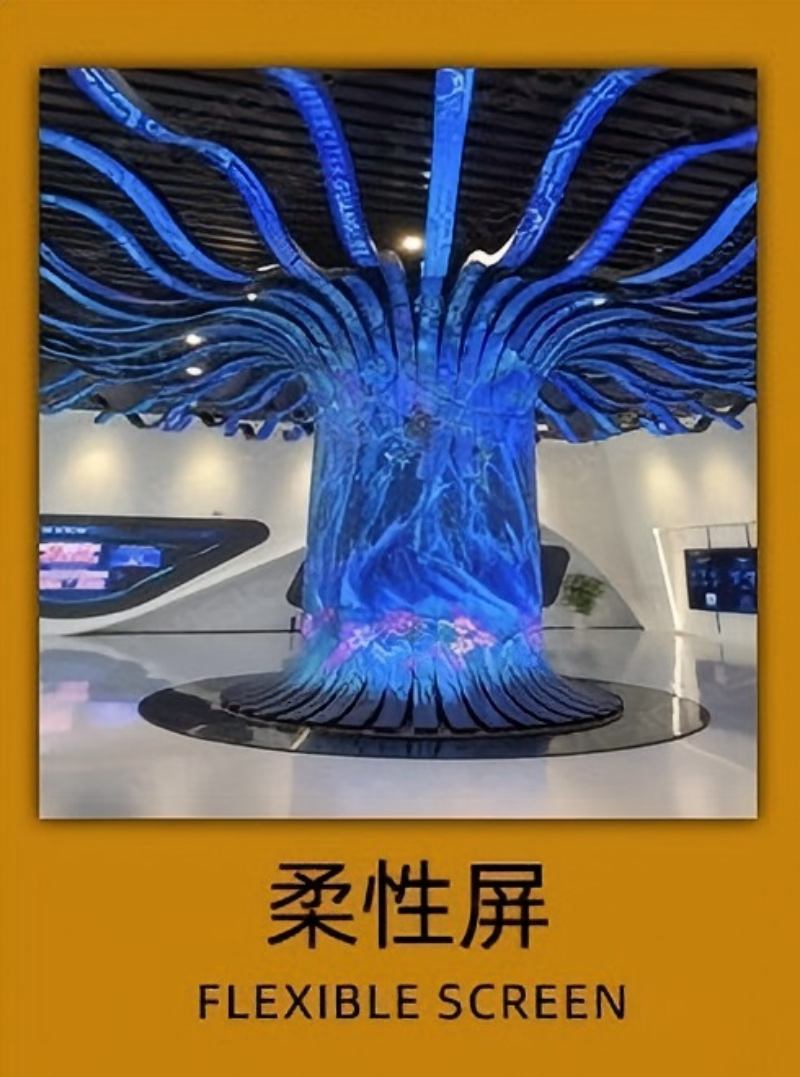

For more applications: Rental Screen, Flexible Screen, Advertising Screen, etc
