Pixel “UFO” Bar Light

I.Description:

1.Innovative 3D Matrix Design:

Featuring a UFO-inspired futuristic silhouette, the precision-engineered 3D optical matrix configuration creates a technologically aesthetic stereoscopic lighting system. Achieves ultra-high light transmission efficiency while balancing functional performance with artistic value.

2.Multi-Scenario Adaptation Solution:

Breaking spatial constraints of traditional lighting, the innovative dual-mode mounting system offers: Suspended ceiling matrix configuration adaptable to varied ceiling heights.Background wall matrix installation. Designed to meet diverse application needs across commercial spaces, art exhibitions, and other environments.

3.3D Dynamic Depth Lighting Effects:

Equipped with triple-layer stereoscopic lighting modules, each layer delivers distinct background visual effects. Programmable via MADRIX to achieve preset dynamic lighting scenarios for immersive spatial storytelling.

4.Intelligent Modular Architecture:

Modular installation design to reduce labor, significantly improving efficiency, making it particularly suitable for large-scale immersive art installation projects.

5.Control System:

SPI signal protocol compatible with MADRIX, DMX512, ARTNET, and DVI control interfaces.


Product Detail

Product Tags

Video

Feature

Xiaosan's Kinetic ‘UFO’ lights, when used with our controller, pulsate with the music, creating a wonderful atmosphere for bars, KTVs, Concert, Nightclub, Disco and other similar venues. ‘UFO’ light is the an ideal choice for your entertainment project.

Product parameters

Name of Product ‘UFO’ Light
Voltage DC24V
Brand Xiaosan
Power 72w
Maximum Power 76w
Product Size (L* W * H) 600*600*172mm
Lamp Bead Mode SMD3535
Place of Original China
IC Type WS2818
Channel RGB
Pixel Numbers 100 pixels
Material PC+ ABS+ Iron
Light Source Life 50,000 hours
Control Method TTL
Waterproof Level IP33
Model No. XS-UFO-01
Working Temperature -40℃---70℃
Your Logo YES
Package Type Neutral Packing or As Per Your Request
Weight 3.4KG
Signal Protocol SPI
Warranty 1 Year
Applications Disco, Nightclub, Bars, lounges, stages, performances, rentals, KTV, etc

Noted:
1.For 220v high power connections, if using 1 square millimeter cable, it can support up to 20 sets of “UFO” Light. For 110V power connection, it can support up to 10 sets of “UFO” Light. Please follow the cable specifications used at the customer's site.
2. When installing the Corn Light Columns, pay attention to the direction. All Corn Light Columns need to be installed in the same direction.
3. For remote control, the network cables need to be cascaded. The first remote control should be connected to the computer control.
4. Please refer to Section V for the wiring of the network cable signal connection.

DMX Control Channel

Channel Value Function
1 0 - 255 Total dimming, 0 is the black field, and 255 is the brightest.

0% - 100%

2 0 - 255 RED

0% - 100%

3 0 - 255 GREEN

0% - 100%

4 0 - 255 BLUE

0% - 100%

5 0 - 255 Adjusting the white component (only valid for RGBW lamps)

0% - 100%

6

0 - 255

Select a program, where four values correspond to one program.

0-3 represents program 1

4-7 represents program 2

8-11 represents program 3

12-15 represents program 4

By analogy, a total of 64 programs can be supported

7 0 - 255

Playback speed: 0 is the slowest, and the speed can be continuously

adjusted from 1 to 255.



8 0 - 255 0 represents normal playback, 255 represents pause.

0% - 100%

product-description1

Application

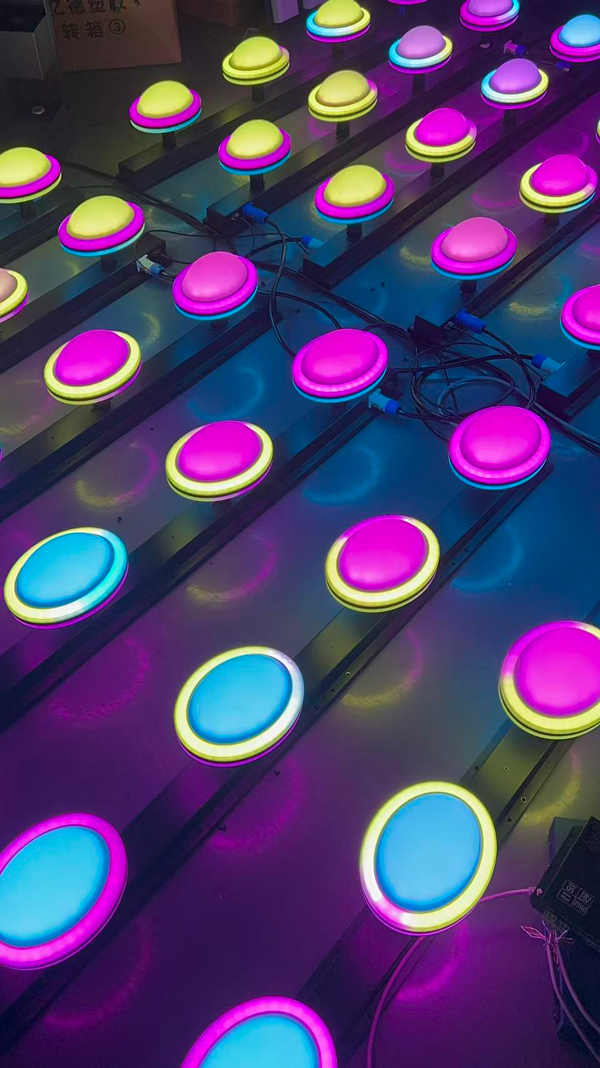

UFO-Light-Upgraded-Version1
