LED Magic 3D Gourd Light

Product Overview

With the ever-changing market for integrated entertainment lighting (including color-changing lights, laser lights, LED displays, projectors, MADRIX light strips, etc.), centralized control of ambient lighting has become increasingly difficult, leading to significant light pollution and visual impact.



To enhance the overall visual experience for spectators, we have developed a comprehensive design that integrates insights from industry experts both domestically and internationally, along with our years of project implementation experience and on-site testing results. This design allows for real-time control via an intelligent control box or DMX512 console, and enables the creation of various 3D dot matrix designs. The resulting 3D matrix is composed of seamlessly spliced LED pixels.


Product Detail

Product Tags

Video

Product Overview

Currently, entertainment venues are increasingly upgrading their private rooms and lobby lighting, a trend that has persisted for three to five years. For clients, cost control is paramount. Introducing LED screens significantly increases costs, and small-area installations often fail to achieve optimal ambient lighting effects. Furthermore, specialized installation is essential, and the labor costs are substantial. Furthermore, the use of iron pipe structures necessitates significant alterations to the overall environmental structure, thereby substantially increasing renovation costs.

Because this product employs a modular, interlocking installation method, installation can be performed by ordinary trades, and no major modifications to the overall environmental structure are required; simply maintaining a flat surface or light pole is sufficient. Therefore, the product solves both the problems of complex and labor-intensive installation and the visual impact of the overall ambient lighting effect, effectively acting as a catalyst for the overall ambient lighting design.

Features

It can be controlled via a full-color SPI controller, and can be operated in real time by an intelligent lighting controller or DMX512 console. It can be customized for dimming in conjunction with the overall configuration of ambient lighting (laser lights, moving head lights, color-changing lights, MADRIX light strips, etc.). Program debugging and modifications are convenient and easy to perform, truly achieving (sound-light-screen) linkage and interaction.
It adopts a modular design, eliminating the need for third-party installation, resulting in high installation efficiency and strong overall integrity. From an engineering installation perspective, it can significantly save on labor and installation costs.

Product parameters

Product Name LED Magic 3D Gourd Light
Voltage AC110-220V, 24V
Brand Xiaosan
Light Source LEDs
Chips WS2812-5050
Signal Protocol SPI
LED Model WS2812
Channels GRB
Gray Scale 256
Dimensions & Weight 235*133*113mm, 0.9KGS
410*133*113mm, 1.15KGS
585*133*113mm, 1.4 KGS
760*133*113mm, 1.65KGS
935*133*113mm, 1.9KGS
1110*133*113mm, 2.15KGS
Material ABS+ PC+ Metal+ LED
Pixel Without beam light: 60 Pixels     With beam light: 61Pixels
Without beam light: 120 Pixels    With beam light: 121Pixels
Without beam light: 180 Pixels   With beam light: 181Pixels
Without beam light: 240 Pixels   With beam light: 241Pixels
Without beam light: 300 Pixels   With beam light: 301Pixels
Without beam light: 360 Pixels   With beam light: 361Pixels
Power Without beam light: 4.5W       With beam light: 7.5W
Without beam light: 9W         With beam light: 12W
Without beam light: 13.5W       With beam light: 16.5W
Without beam light: 18W        With beam light: 21W
Without beam light: 22.5W       With beam light: 25.5W
Without beam light: 27W         With beam light: 30W
Waterproof Rating IP33
Applications 1. Entertainment Section: KTV private rooms, bars, old building lighting upgrades, KTV corridors, lobby backdrops, creative lounges, etc.
2. Stage Section: Stage performances, media events and press conferences
3. Home Section: Private home theaters

Key Advantages

1. Supports 110-220V wide voltage supply
2. DC reverse connection protection
3. Over voltage protection
4. Signal interference shielding
5. Signal amplification and enhancement
6. Anti-static interference

Why Choose This Product?

1. Installation Issues – Employing the simplest, fastest, and most versatile installation methods suitable for various environments significantly improves installation efficiency. The latest installation methods are also used, with the product consisting of an installation kit, light hooks, and the main body. The installation kit enhances overall installation efficiency, protects power and signal cables, and assists in product positioning. With rising labor costs, especially for professional installations, the kit installation method is suitable for a wide range of users.

2. Centralized Control Issues---The entire environment is composed of various types of lighting fixtures. Integrating and controlling all the lights is becoming an increasingly popular choice for venues and lighting designers. This allows the entire environment to become a unique highlight and also allows lighting designers to control the lighting of the entire environment in real time, greatly enhancing the interactive experience.

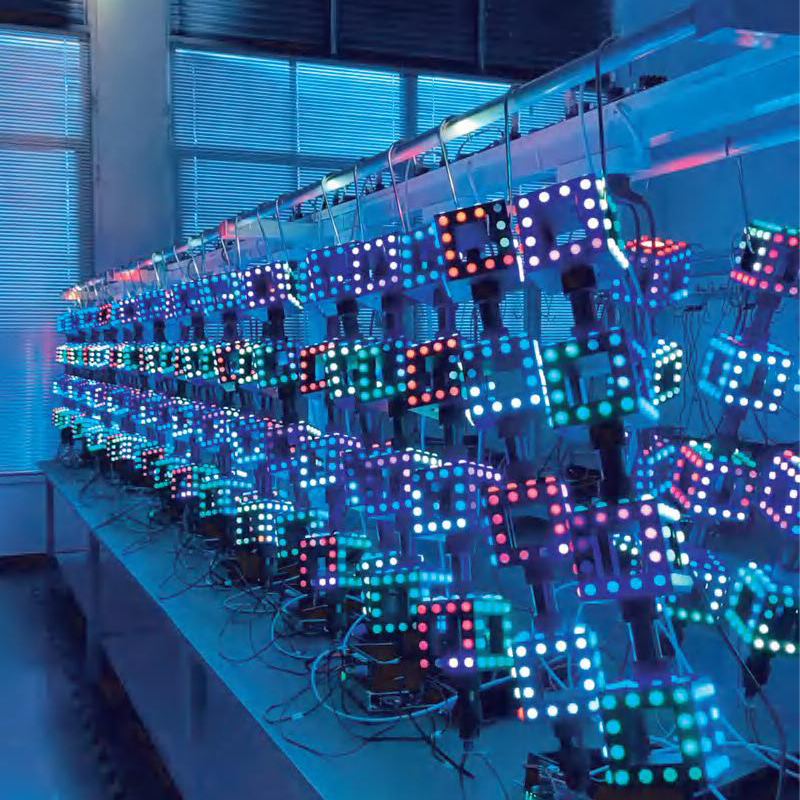

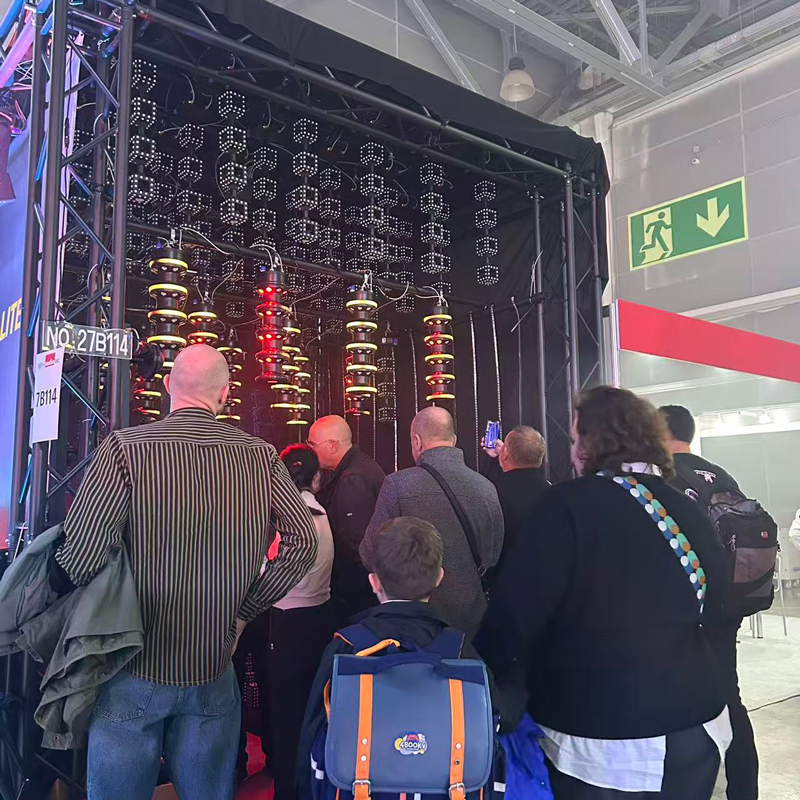

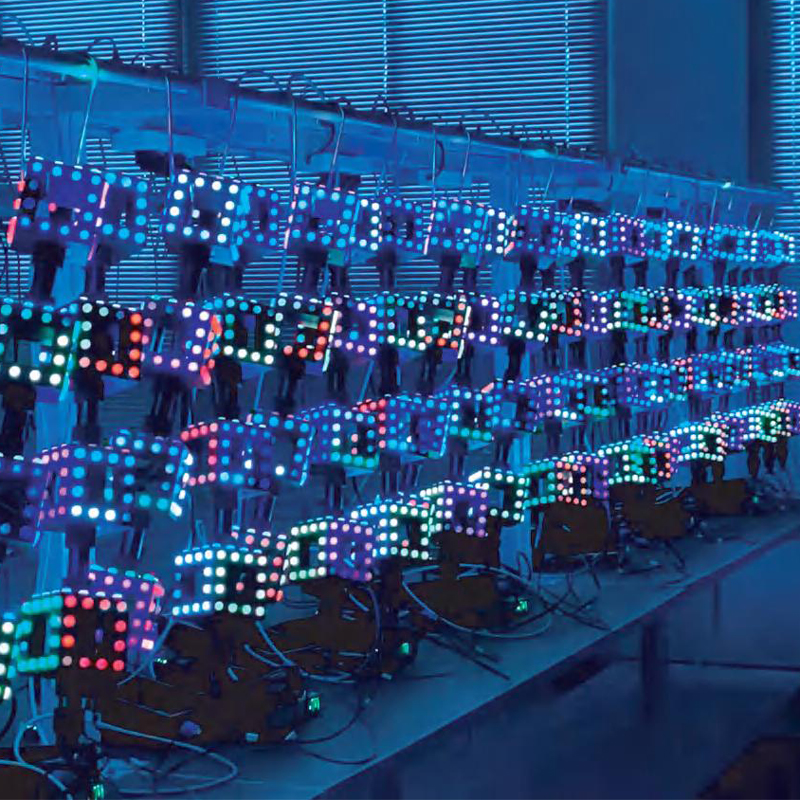

Application

product-description1
product-description2
product-description3
