Led 3D Corn Light The Most Popular Product Your Best Choice For Disco

Product Overview

With the ever-changing market for integrated entertainment lighting (including color-changing lights, laser lights, LED displays, projectors, MADRIX light strips, etc.), centralized control of ambient lighting has become increasingly difficult, leading to significant light pollution and visual impact.

To enhance the overall visual experience for spectators, we have developed a comprehensive design that integrates insights from industry experts both domestically and internationally, along with our years of project implementation experience and on-site testing results. This design allows for real-time control via an intelligent control box or DMX512 console, and enables the creation of various 3D dot matrix designs. The resulting 3D matrix is composed of seamlessly spliced LED pixels.

Send email to us

Product Detail

Product Tags

Video

Product Overview

Currently, entertainment venues are increasingly upgrading their private rooms and lobby lighting, a trend that has persisted for three to five years. For clients, cost control is paramount. Introducing LED screens significantly increases costs, and small-area installations often fail to achieve optimal ambient lighting effects. Furthermore, specialized installation is essential, and the labor costs are substantial. Furthermore, the use of iron pipe structures necessitates significant alterations to the overall environmental structure, thereby substantially increasing renovation costs.

Because this product employs a modular, interlocking installation method, installation can be performed by ordinary trades, and no major modifications to the overall environmental structure are required; simply maintaining a flat surface or light pole is sufficient. Therefore, the product solves both the problems of complex and labor-intensive installation and the visual impact of the overall ambient lighting effect, effectively acting as a catalyst for the overall ambient lighting design.

Features

1. Its three-dimensional matrix shape allows for free combination to create various designs. The matrix effect, composed of combined pixel LEDs, can replace a portion of LED displays as ambient lighting.
2. The corn-shaped light uses 720 2020 pixels and 9 5050 pixels guided by a lens, resulting in high overall brightness and a beam-like effect. When combined with other ambient lighting, it creates a more personalized and striking overall lighting effect.
3. Formed by 729 independent pixels, the light is focused through a lens, resulting in uniform color and strong light consistency.
4. The product comes with a 1:1 base to aid in the overall installation and positioning, preventing deformation of the design. It can also conceal power and signal cables, making it suitable for surface mounting in renovated rooms and reducing installation costs. The outer casing is made of imported PC material, making it extremely durable.

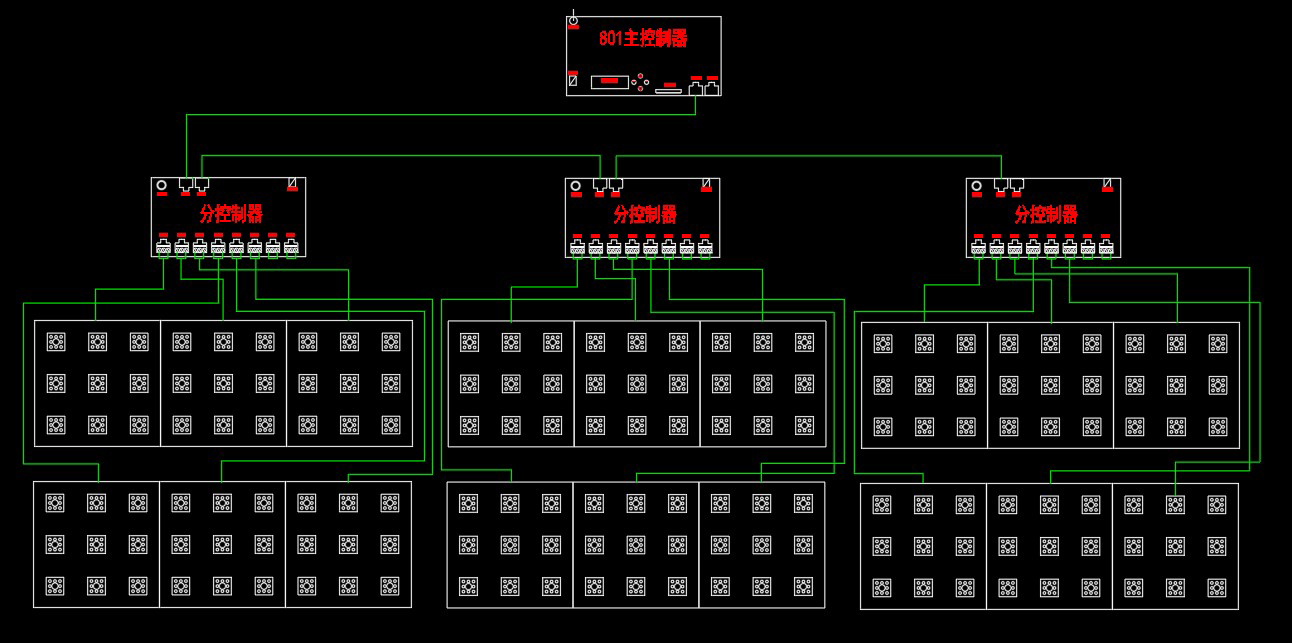

5. It can be controlled via a full-color SPI controller, and can be operated in real time by an intelligent lighting controller or DMX512 console. It can be customized for dimming in conjunction with the overall configuration of ambient lighting (laser lights, moving head lights, color-changing lights, MADRIX light strips, etc.). Program debugging and modifications are convenient and easy to perform, truly achieving (sound-light-screen) linkage and interaction.
6. It adopts a modular design, eliminating the need for third-party installation, resulting in high installation efficiency and strong overall integrity. From an engineering installation perspective, it can significantly save on labor and installation costs.

Product parameters

Voltage	AC110-220V, DC5V
Brand	Xiaosan

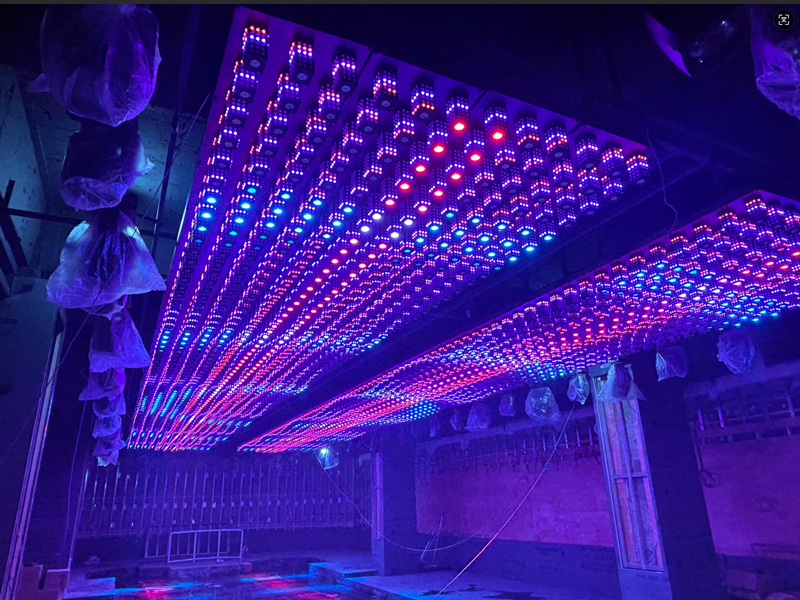

Install Recommendation	Light with beam installed on the roof, without beam on the wall
Power	1x light 15w 4x lights with beam 60w, 4x lights without beam 24w 6x lights with beam 90w, 6x lights without beam 36w 9x lights with beam 135w, 9x lights without beam 54w

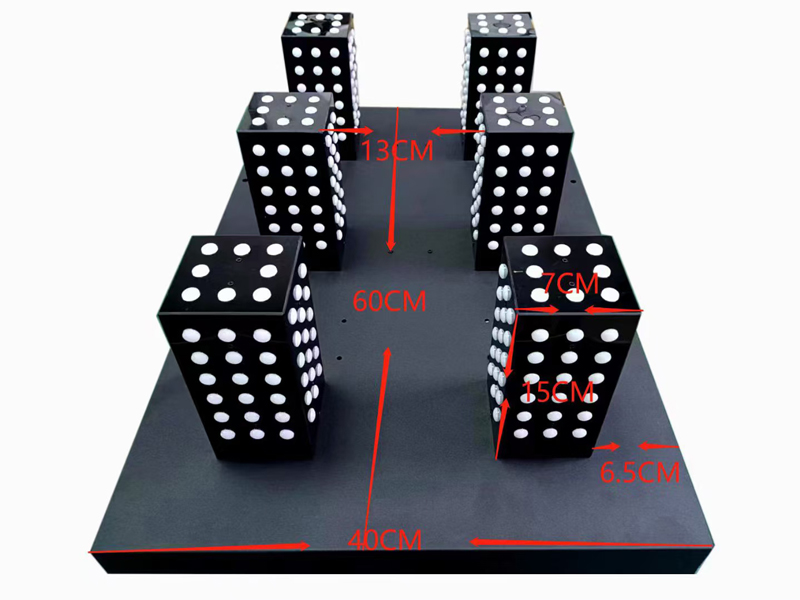

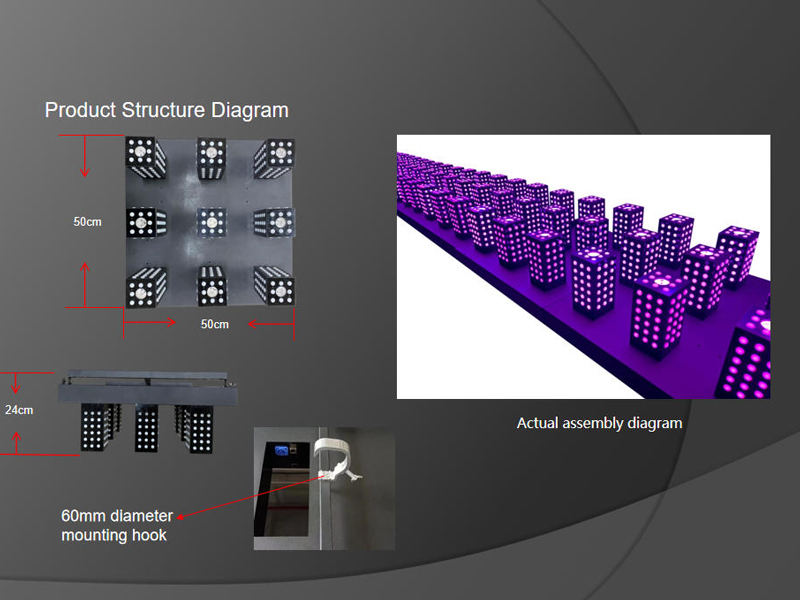

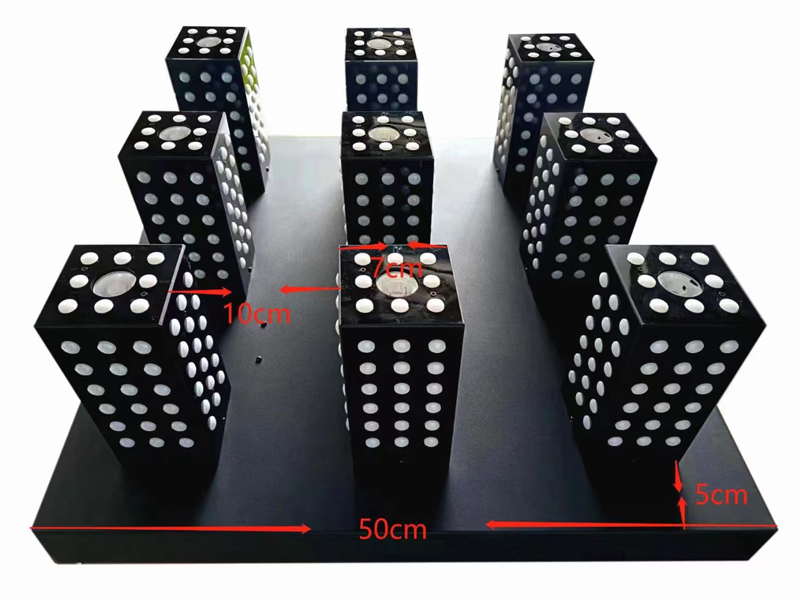

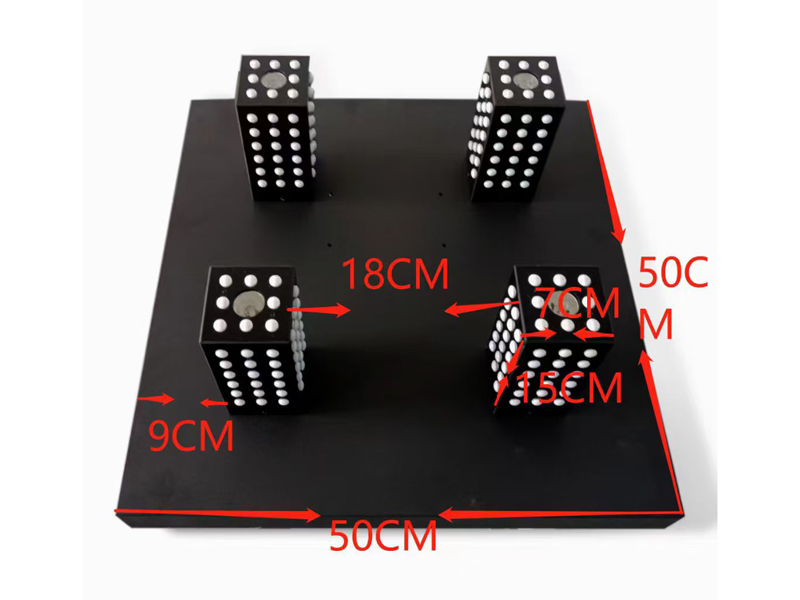

Dimensions	1x light: 127127233 mm 4x lights : AC110 / 220V: 500500250 mm, DC 5V: 500500180 mm 6x lights: AC110 / 220V: 400600250 mm, DC 5V: 400600180mm 9x lights: AC110 / 220V: 500500250 mm, DC5V: 500500180 mm
LED Model	WS2812
Channels	GRB
Pixel Count	1x light: 81 pixels 4x lights with beam 324 pixels, 4x lights without beam 320 pixels 6x lights with beam 486 pixels, 6x lights without beam 480 pixels 9x lights with beam 729 pixels, 9x lights without beam 720 pixels
Material	ABS+PC+PCB+LED
Control Method	TTL Protocol
Weight	1x light: 0.88KG 4x lights: AC110 / 220V: 6.25KGS, DC 5V: 3.25KGS 6x lights: AC110 / 220V: 6.75KGS, DC 5V: 3.75KGS 9x lights: AC110 / 220V: 7.5KGS. DV 5V: 4.5KGS
Waterproof Rating	IP33

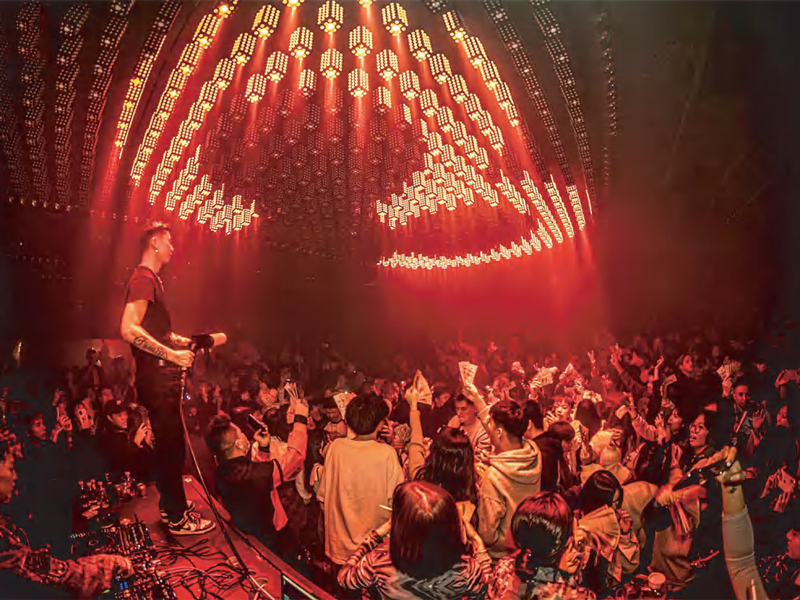

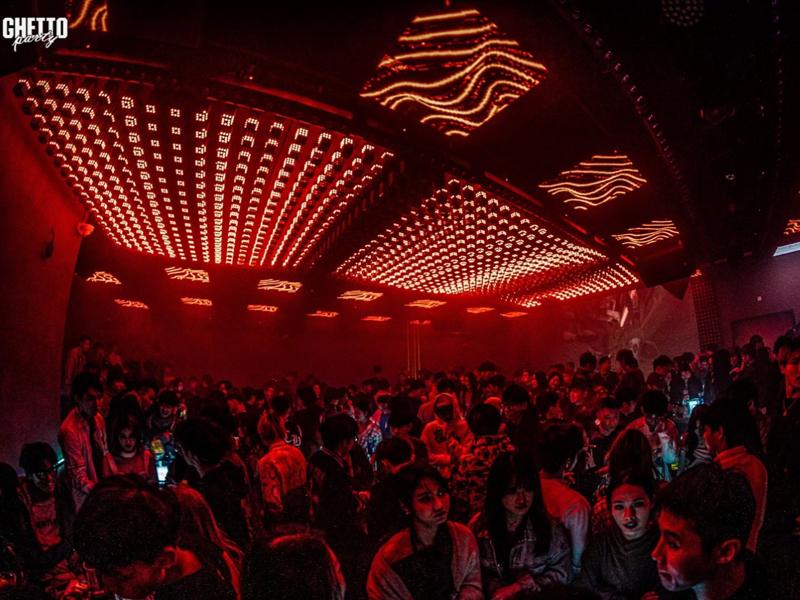

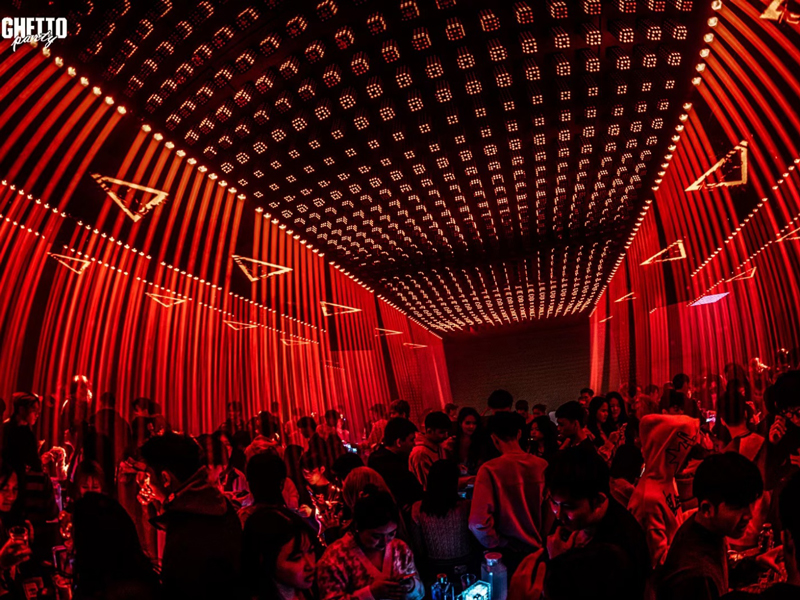

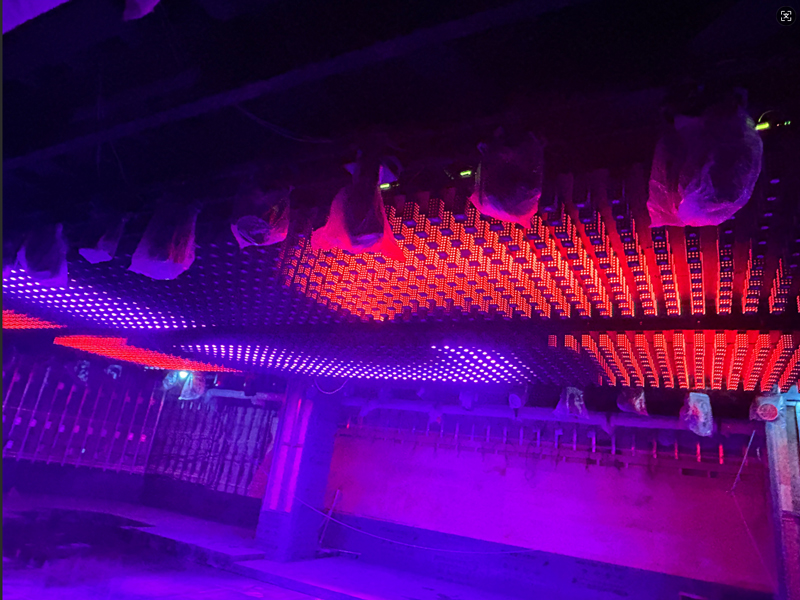

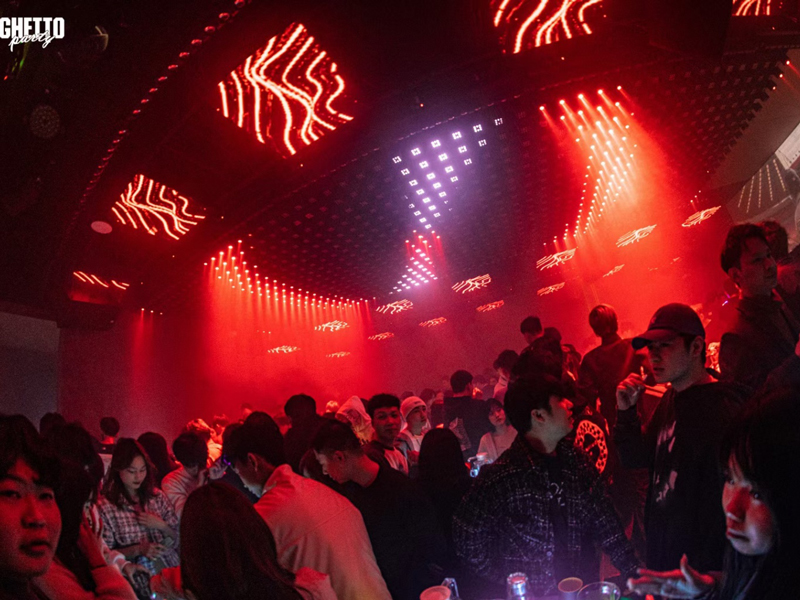

Applications	1. Entertainment Section: KTV private rooms, bars, old building lighting upgrades, KTV corridors, lobby backdrops, creative lounges, etc. 2. Stage Section: Stage performances, media events and press conferences 3. Home Section: Private home theaters

Key Advantages

1. Supports 110-220V wide voltage supply
2. DC reverse connection protection
3. Over voltage protection
4. Signal interference shielding
5. Signal amplification and enhancement
6. Anti-static interference

Why Choose This Product?

1. Installation Issues – Employing the simplest, fastest, and most versatile installation methods suitable for various environments significantly improves installation efficiency. The latest installation methods are also used, with the product consisting of an installation kit, light hooks, and the main body. The installation kit enhances overall installation efficiency, protects power and signal cables, and assists in product positioning. With rising labor costs, especially for professional installations, the kit installation method is suitable for a wide range of users.

2. Rectangular Design – The rectangular structure allows for excellent arrangement and creates unique effects. The corn-shaped lights utilize a rectangular structure, allowing for various combinations to form different shapes. Considering on-site control, during assembly, only the first matrix needs to be positioned to locate the next matrix, eliminating tedious repetitive point marking and saving technical programming time.

3. Centralized Control Issues---The entire environment is composed of various types of lighting fixtures. Integrating and controlling all the lights is becoming an increasingly popular choice for venues and lighting designers. This allows the entire environment to become a unique highlight and also allows lighting designers to control the lighting of the entire environment in real time, greatly enhancing the interactive experience.
