DJ Stage Lighting Control Console New DMX 192 Stage Beam KTV Par Light DMX Master Console Programmable Control DMX 512 Control

Xiaosan has been providing comprehensive one-stop services for our clients from all over the world. We offer an extensive product line, ensuring a wide range of high-quality lighting solutions to meet diverse needs.

Our services include not only product supply but also project solution design, allowing us to tailor lighting solutions specifically to your event requirements. We have a dedicated production team and an integrated system that encompasses production, research and development, sales, service, and installation and commissioning.

With a mature production line and a professional technical support team, we ensure that our clients receive top-notch support throughout the entire process. Our commitment to quality is further demonstrated by our complete set of industry certifications.

We pride ourselves on our ability to deliver customized, innovative lighting solutions backed by years of expertise and a strong industry presence.

Send email to us

Product Detail

Product Tags

Key Attributes

Connection Mode	DMX512	Product Name	192DMX512 CONSOLE
Type	Led Matrix Light	Warranty(Year)	2-Year
Place of Origin	Guangdong, China	Brand Name	Xiaosan
IP Rating	IP33	Emitting Color	RGB/RGBW/Singel color
Material	ABS	Color Rendering	70
Lighting solutions	Lighting And Circuitry Design, Auto Cad Layout	Selling Units	Single item
Product Weight（kg）	2.5	Product name	DMX console dmx controller
Support Dimmer	Yes	Input current	300mAmin
Material	Aluminum	Light Source	LED
Channel	16 Channels	Chases	To select l---6 chases
Package size	50X21X10 cm	Package Weight	3.5kg
Application scene	DJ/NightClub/Wedding/KTV/Stage/Bar/Live House/Concert/Studio/etc

Product Feature

1) This unit is a 192-channel DMX512 signal controller, employing precise CPU processing technology and featuring a DMX polarity selection switch.
2) It has a MIDI interface for on-the-spot control via MIDI signals, and includes MIDI trigger, bank/chaps, and bank out functions.

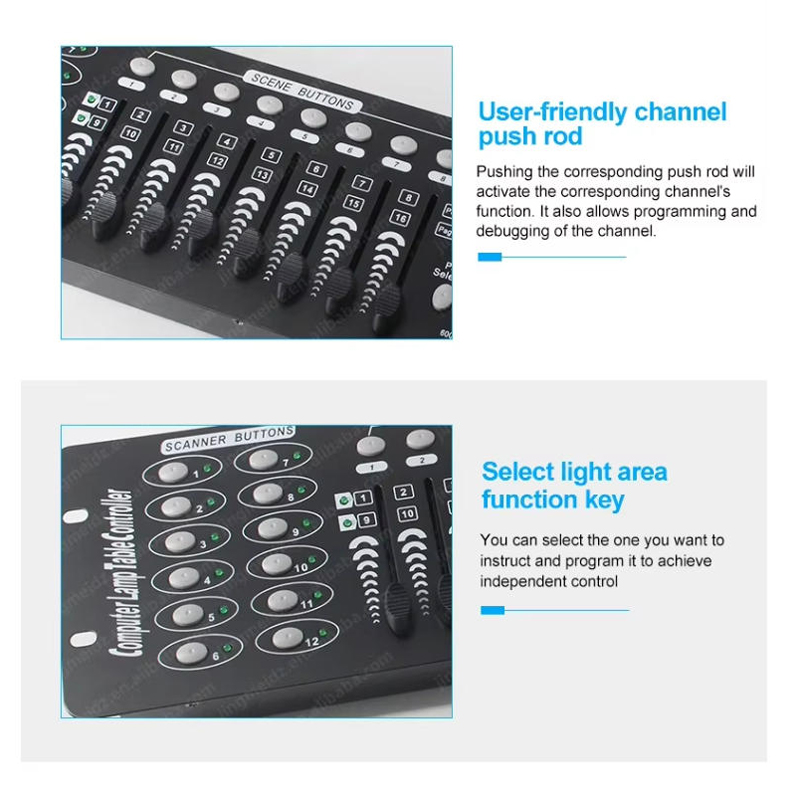

3) It has 12 scanners, each containing 16 channels, divided into pages A (1-8) and B (9-16).
4) Channel positions can be finely adjusted in steps, or paused; pages A and B can be overlaid.
5) It has 30 programmable banks, each containing 8 programmable screens.
6) During programming, pressing the FINE key illuminates the corresponding LED, and the joystick value can be set.
7) Six programmable chassis can be stacked and run simultaneously;
8) Each chassis can be programmed with 240 steps (30 bank segments) and features automatic, manual, and voice-controlled operation modes;
9) In automatic mode, the FADE switch can be selected to have ALL or X/Y settings. Both have speed adjustment.
10) Each scanner can be set with Assigw (joystick) or Review (reverse) functions.
11) The consoles can exchange internally programmed data and have a Blackout output function;
12) An 8*2 LCD backlit display shows the operation steps in both English and Chinese; each button has a corresponding LED indicator;
13) It has a DC interface and is configured with a DC power supply (input AC120V~230V, output DC9~12V 300~500MA).
Dimensions (mm): 610x195x150 1PCS/Package
Weight: 2.5kg
Gross Weight: 3.6kg
